IBS-Parts Cleaning Device Type G-50-W
Closed workshop version. Sturdy and compact design, for cleaning small and light parts (up to 50 kg).
Description
The IBS parts cleaning device type G-50-W was specially developed for manual brush cleaning of parts contaminated with oil and grease using cold cleaning agents (petroleum-based hydrocarbon mixtures).

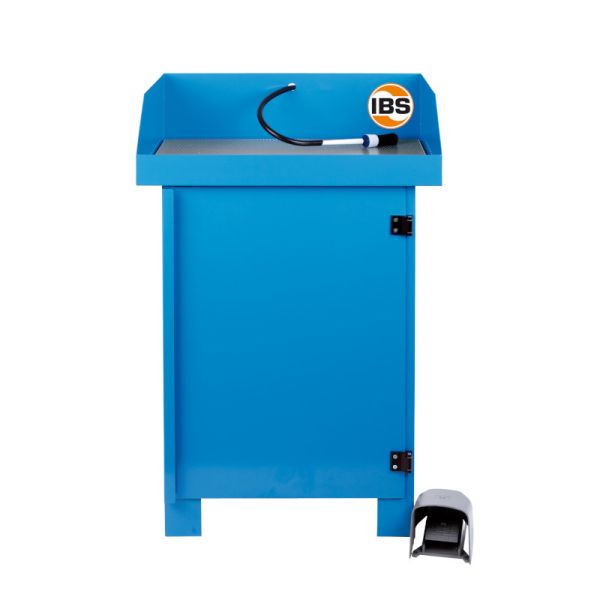

This closed workshop version with an ergonomic workbench height (895 mm) has a work surface of 646 x 465 mm. Thanks to its stable and compact design, this brush washstand is suitable for cleaning small and light parts weighing up to 50 kg.
The sturdy powder-coated sheet steel construction and the robust perforated plate guarantee a long service life. The lower drain and the sloping drain ensure that everything flows back into the drum and the cleaner cannot overflow.
The convenient and safe foot switch technology is user-friendly and easy to operate.
The unique IBS special pump is the centrepiece of the IBS parts cleaners and is designed for use in IBS parts cleaners. The pump is self-priming, unpressurised and absolutely trouble-free and maintenance-free.
The complete IBS pump set type G-50 is included in the scope of delivery
Further information
| Connection: | 230 V, 50 Hz |
|---|---|
| External dimensions WxDxH: | 656 x 475 x 1075 mm |
| Load capacity: | 50 kg |
| Weight: | 25 |
| Working height: | 895 mm |
| Working surface: | 646 x 465 mm |
| suitable container: | 50 l |
IBS circulation principle
By pressing the foot switch, the special IBS pump feeds the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).

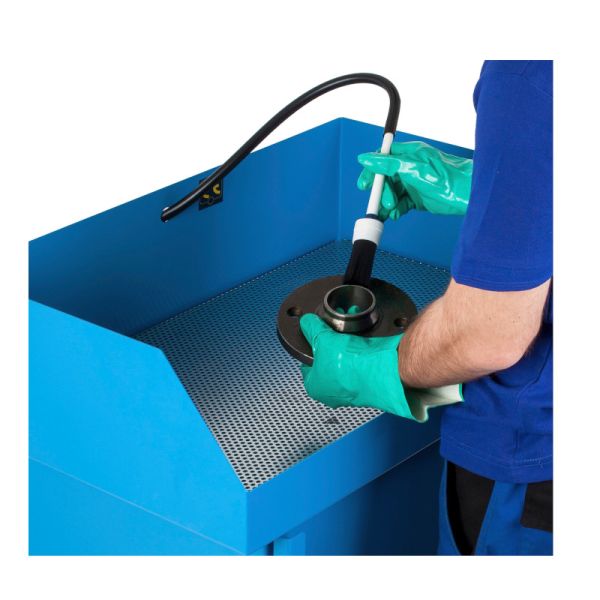

The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.
During the manual cleaning process, the fluid is constantly replenished and the contaminated fluid flows back into the drum.

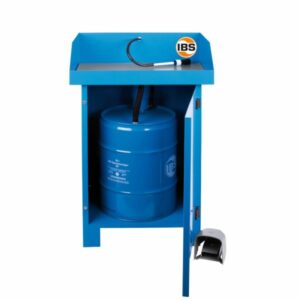

In the drum, the foreign substances carried in separate themselves from the cleaner and settle at the bottom of the drum. As the pump pipe is fitted above the base of the drum, the pump always draws in clean special cleaner.
This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period (6 to 12 months).
The cleaner is replaced by simply changing the drum. This functional principle conserves resources, is sustainable and saves costs and energy.
Advantages
Spare parts
The IBS spare parts package guarantees perfect function and ensures a long service life. The original spare parts are perfectly matched to the IBS parts cleaning devices and guarantee optimum function. The IBS spare parts pack consists of IBS cleaning brush, standard - fine bristles 0.3 mm IBS cleaning brush, standard - coarse bristles 0.5 mm IBS return hose NW 20 IBS brush hose (1.5 m) Hose clamp (large) 16-25/9 (suitable for all pump sets; except type K, type A, W series) Hose clamp (small) 8-16/9 (suitable for all pump sets)
The IBS special pump type G-50 is a self-priming pump and was specially developed for use in the IBS parts cleaning device. The pump has a low flow rate and does not build up pressure, thus fulfilling all requirements of the prescribed standard (EN 12921). The unique suction system and magnetic slip clutch ensure maintenance-free operation and a long service life. When using IBS special cleaner, we grant an extended factory warranty of 3 years. Scope of delivery: IBS special pump IBS foot switch Electric cable with safety plug Brush hose Return hose IBS special brush coarse Hose clamps 3/4 The pump is completely assembled and ready for immediate use.
The IBS brush hose is a special design made of solvent-resistant Perbunan. For use in the parts cleaning device, the cleaning brush (hollow brush) is placed on the brush hose.The durable and resistant brush hose has a high chemical resistance to mineral oils, greases and hydrocarbons and is ideal for use with IBS special cleaning agents (cold cleaners).
The IBS special brush is a hollow brush with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush with fine bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, small, with fine bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.3 mm thick). The cleaning brush is suitable for light contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for coarse contamination and all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, long, with coarse bristles, specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, wide, with natural hair bristles, which was specially developed for use in the IBS parts cleaning device. The handle is conically shaped and is attached to the brush tube. The bristles are made of natural hair. The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
The IBS special brush is a hollow brush, small, with coarse bristles, specially developed for use in the IBS parts cleaner. The handle is conically shaped and is attached to the brush tube. The bristles are made of special nylon (0.5 mm thick). The cleaning brush is suitable for all standard cleaning applications with the parts cleaning device.
