IBS-Waschautomat Typ Jumbo 115-2
Application Procedures / Fully Automatic Spray Cleaning / Automatic Parts Washers

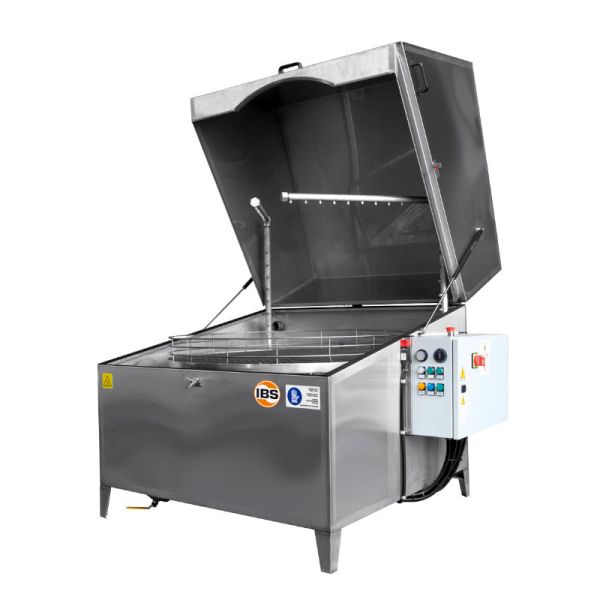

IBS Automatic Parts Washer JUMBO 115-2

Heatable for aqueous cleaning agents. For removing oil and grease contamination in the shortest possible time. Universally applicable for the fully automatic cleaning of small parts from production, manufacturing, maintenance, e.g. bolts, sleeves, ball bearings.

SKU: 2129901 Categories: Automatic Parts Washers, Automatic Parts Washers
Search
Categories
  • Application Procedures
    • Floor Cleaning
    • Fully Automatic Spray Cleaning
      • Automatic Parts Washers
      • Spritzreiniger_EN
    • High-Pressure-Cleaning/Pre-Spraying
    • Machine Cleaning
    • Manual Brush Cleaning
      • Brush Cleaning Device for manual cleaning (with cold cleaner)
      • Cold Cleaning Agent (petroleum-based)
    • Resin Removal
    • Spray-Application
      • Cleaning - Degreasing - Care
      • Greasing - Dissolving – Rust Protection
    • Ultra Sonic Cleaning
  • Cleaning- and Maintenance Products
    • Accessoire
      • Absauganlagen_EN
      • Handschuhe_EN
      • Pinsel_EN
      • Pumpen_EN
      • Schläuche_EN
      • Wanne_EN
    • Automatic Parts Washers
    • Maintenance Products
    • Parts Cleaning Devices
      • Industrie_EN
      • Werkstatt_EN
    • Special Cleaners (Cold Cleaners)
      • EL_Extra (EN)
      • IBS-Spezialreiniger 100+ (EN)
      • IBS-Spezialreiniger Quick (EN)
      • IBS-Spezialreiniger Securol (EN)
      • Purgasol (EN)
      • RF-Reiniger (EN)
    • Special Cleaners WAS (water-based)
      • 10_100 (EN)
      • 10_500 (EN)
      • 20_100 (EN)
      • 30_100 (EN)
      • 30_300 (EN)
      • 40_100 (EN)
      • 50_100 (EN)
      • 60_100 (EN)
    • Technical Sprays
  • Description
  • Technical data

The soiled items to be washed are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the appliance is switched on and the suds are heated in the tank. When the appliance is closed, the basket rotates around its own axis at a constant speed. The pump units suck the suds out of the wash tank and convey them through 6 stainless steel nozzle pipes with overlapping flat-jet nozzles. The items to be cleaned are intensively blasted from all sides with the hot suds while the motor-driven basket rotates evenly.
When the cleaning process is finished, the unit switches off automatically.

Advantages

  • 2 pumps arranged horizontally
  • 6 three-dimensional nozzle pipes made of stainless steel
  • Robust stainless steel construction
  • additional small parts cleaning basket made of stainless steel (Ø 170 mm)
  • rotating washing basket made of stainless steel, V-belt drive via separate motor
  • vapour extractor
  • Stainless steel sieve plate with filter basket above the wash tank
  • Low-water cut-out
  • Individually height-adjustable feet

Technical data

Outer dimensions WxDxH

1570 x 1510 x 1495 mm

External dimensions WxDxH (open)

1570 x 1830 x 2175 mm

Useful height

700 mm

Load-bearing capacity

350 kg

Basket diameter

1150 mm

Wash tank

280 Liter

Pump pressure

2,3 bar

Spray volume

2 x 10.800 l/h

Connection

13,5 KW / 400 V / 50 Hz / 32 A

Weight

250 kg
