IBS-Waschautomat Typ Maxi 78
Application Procedures / Fully Automatic Spray Cleaning / Automatic Parts Washers

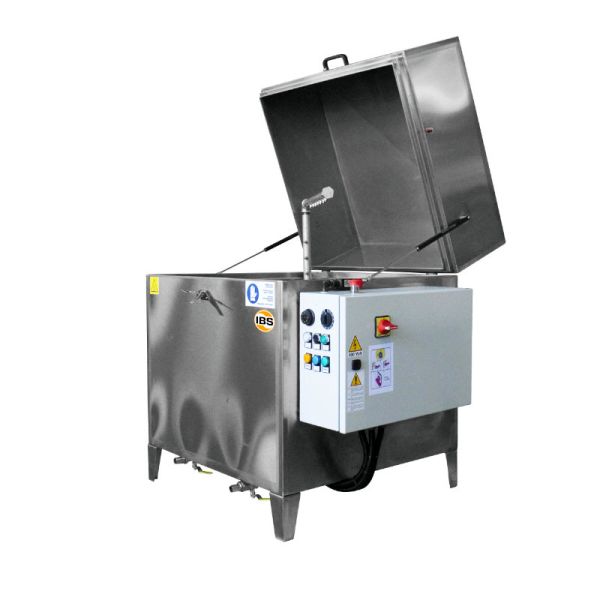

IBS-Automatic Parts Washer MAXI 78

Heatable for aqueous cleaning agents. For removing oil and grease contamination in the shortest possible time. Universally applicable for fully automatic cleaning of small parts from production, manufacturing, maintenance, e.g. bolts, sleeves, ball bearings.

SKU: 2129905 Categories: Automatic Parts Washers, Automatic Parts Washers
Search
Categories
  • Application Procedures
    • Floor Cleaning
    • Fully Automatic Spray Cleaning
      • Automatic Parts Washers
      • Spritzreiniger_EN
    • High-Pressure-Cleaning/Pre-Spraying
    • Machine Cleaning
    • Manual Brush Cleaning
      • Brush Cleaning Device for manual cleaning (with cold cleaner)
      • Cold Cleaning Agent (petroleum-based)
    • Resin Removal
    • Spray-Application
      • Cleaning - Degreasing - Care
      • Greasing - Dissolving – Rust Protection
    • Ultra Sonic Cleaning
  • Cleaning- and Maintenance Products
    • Accessoire
      • Absauganlagen_EN
      • Handschuhe_EN
      • Pinsel_EN
      • Pumpen_EN
      • Schläuche_EN
      • Wanne_EN
    • Automatic Parts Washers
    • Maintenance Products
    • Parts Cleaning Devices
      • Industrie_EN
      • Werkstatt_EN
    • Special Cleaners (Cold Cleaners)
      • EL_Extra (EN)
      • IBS-Spezialreiniger 100+ (EN)
      • IBS-Spezialreiniger Quick (EN)
      • IBS-Spezialreiniger Securol (EN)
      • Purgasol (EN)
      • RF-Reiniger (EN)
    • Special Cleaners WAS (water-based)
      • 10_100 (EN)
      • 10_500 (EN)
      • 20_100 (EN)
      • 30_100 (EN)
      • 30_300 (EN)
      • 40_100 (EN)
      • 50_100 (EN)
      • 60_100 (EN)
    • Technical Sprays
  • Description
  • Technical data

The soiled items to be washed are placed in the rotating washing basket and the lid is closed. After setting the desired washing temperature and time, the appliance is switched on and the suds are heated in the tank. When the appliance is closed, the basket rotates around its own axis at a constant speed. The pump units suck the suds out of the wash tank and convey them through 6 stainless steel nozzle pipes with overlapping flat-jet nozzles. The items to be cleaned are intensively blasted from all sides with the hot suds while the motor-driven basket rotates evenly.
When the cleaning process is finished, the unit switches off automatically.

Advantages

  • 1 pump arranged vertically
  • 3 three-dimensional nozzle pipes made of stainless steel
  • Robust stainless steel design
  • additional small parts cleaning basket made of stainless steel (Ø 170 mm)
  • rotating washing basket made of stainless steel, gear drive via separate motor
  • suction filter in front of the pump shaft
  • High spray pressure
  • Steam outlet
  • Stainless steel sieve plate with filter basket
  • Water shortage protection

Technical data

Outer dimensions WxDxH

1130 x 1010 x 1150 mm

External dimensions WxDxH (open)

1130 x 1220 x 1730 mm

Useful height

500 mm

Load-bearing capacity

150 kg

Basket diameter

780 mm

Wash tank

85 Liter

Pump pressure

3,1 bar

Spray volume

4.800 l/h

Connection

4,8 KW / 400 V / 50 Hz

Weight

90 kg
