IBS Parts Cleaning Device Type W-250
Cleaning- and Maintenance Products / Parts Cleaning Devices / Industrie_EN

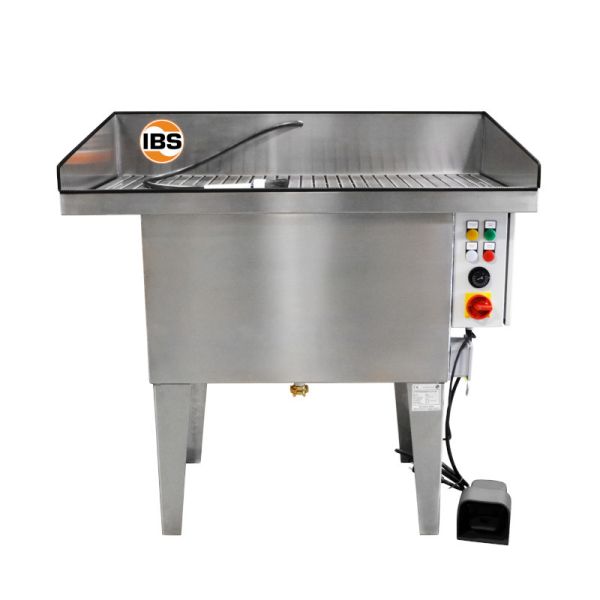

IBS Parts Cleaning Device Type W-250

Heatable unit, for the use of aqueous cleaning agents with large working surface. 3-year warranty on parts cleaning device and special pump when using IBS special cleaner.

SKU: 2120035 Category: Industrie_EN
Search
Categories
  • Application Procedures
    • Floor Cleaning
    • Fully Automatic Spray Cleaning
      • Automatic Parts Washers
      • Spritzreiniger_EN
    • High-Pressure-Cleaning/Pre-Spraying
    • Machine Cleaning
    • Manual Brush Cleaning
      • Brush Cleaning Device for manual cleaning (with cold cleaner)
      • Cold Cleaning Agent (petroleum-based)
    • Resin Removal
    • Spray-Application
      • Cleaning - Degreasing - Care
      • Greasing - Dissolving – Rust Protection
    • Ultra Sonic Cleaning
  • Cleaning- and Maintenance Products
    • Accessoire
      • Absauganlagen_EN
      • Handschuhe_EN
      • Pinsel_EN
      • Pumpen_EN
      • Schläuche_EN
      • Wanne_EN
    • Automatic Parts Washers
    • Maintenance Products
    • Parts Cleaning Devices
      • Industrie_EN
      • Werkstatt_EN
    • Special Cleaners (Cold Cleaners)
      • EL_Extra (EN)
      • IBS-Spezialreiniger 100+ (EN)
      • IBS-Spezialreiniger Quick (EN)
      • IBS-Spezialreiniger Securol (EN)
      • Purgasol (EN)
      • RF-Reiniger (EN)
    • Special Cleaners WAS (water-based)
      • 10_100 (EN)
      • 10_500 (EN)
      • 20_100 (EN)
      • 30_100 (EN)
      • 30_300 (EN)
      • 40_100 (EN)
      • 50_100 (EN)
      • 60_100 (EN)
    • Technical Sprays
  • Description
  • Technical data
  • Advantages
  • Areas of application
  • Documents

Description

The IBS parts cleaning device type W-100 was specially developed for manual brush cleaning, with heating, of parts soiled with oil and grease. The unit is operated with neutral or alkaline water-based cleaning agents.

This workshop version, with a working height of 921 mm, has a bath capacity of 28 to max. 60 l and a smaller working surface of 790 x 490 mm. With a load capacity of up to 100 kg, this brush washbasin is ideal for cleaning medium-sized and heavy parts.

The sturdy stainless steel construction and the robust galvanised slatted grate guarantee a long service life.

Function
By pressing the foot switch, the cleaning liquid flows through the hollow brush and the parts soiled with oil and grease can be easily brushed off. Can also be used as an immersion bath. By simply opening the upper work surface, the parts to be cleaned can be placed in the tank with liquid.

Technical data

Outer dimension (closed unit):

800 x 530 x 1127 mm (B x T x H)

Worktop

790 x 490 mm

Working height:

929 mm

Load capacity:

100 kg

Filling rod:

60 L

Connection:

230 V, 50 Hz, 2 KW Heizleistung

Weight:

50 kg

Advantages

  • robust & stable construction (Made in Germany)
  • High-quality, durable and insensitive stainless steel construction (no plastic)
  • Workshop version for small space requirements and cleaning of parts up to 100 kg
  • for flexible use: combination of immersion cleaning and manual brush cleaning
  • heatable up to max. 45°C – energy-saving, as no power consumption 24/7

Applications

For manual cleaning of metal and plastic components soiled with oil and grease, e.g. in the following areas:

  • Industrial parts cleaning and surface degreasing
  • Maintenance and repair of production plants, conveyor belts, fittings, pumps, motors, other machine parts
  • Repair and maintenance of means of transport (motor vehicles, lorries and rail vehicles, ground and material handling equipment, agricultural and construction machinery)

Documents

  • Product data sheet
