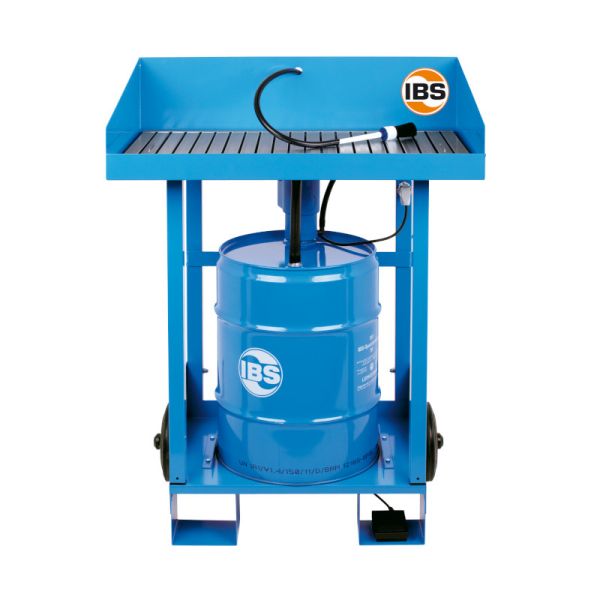

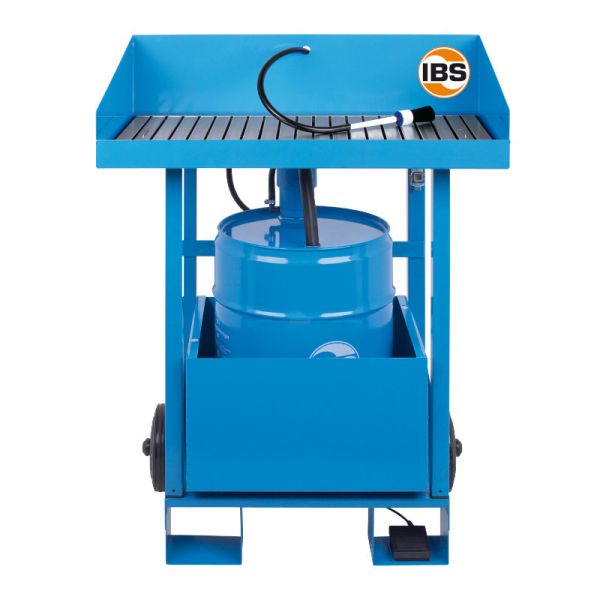

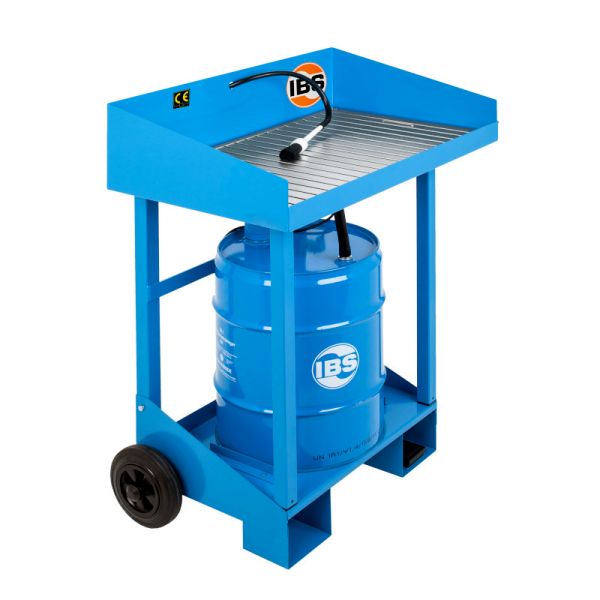

IBS-Parts Cleaning Device Type F2

Name: IBS-Parts Cleaning Device Type F2
SKU: 2120018
Availability: InStock

Mobile unit (hand truck principle) for mobile industrial use at changing locations, with medium sized work surface.

SKU: 2120018 Categories: Brush Cleaning Device for manual cleaning (with cold cleaner), Industrial execution, workshop

Description

The IBS parts cleaning device type F2 was specially developed for manual brush cleaning of oil and grease contaminated parts, with cold cleaner (petroleum-based hydrocarbon mixtures).

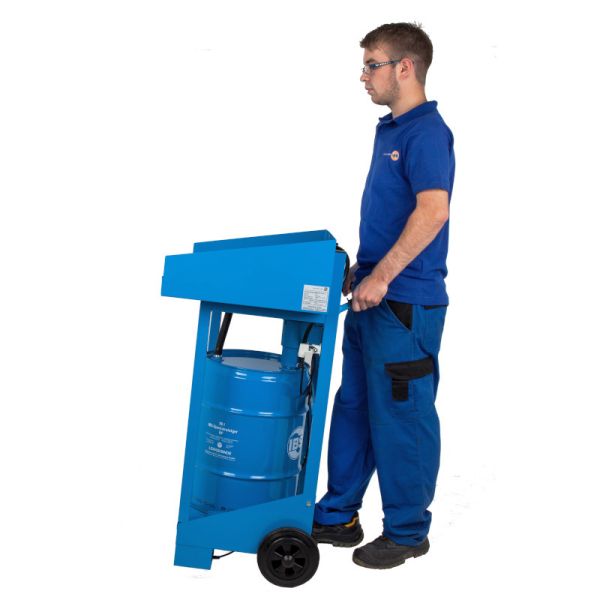

This mobile unit with wheels (handcart principle), is suitable for mobile use at changing locations. With a medium-sized work surface (790 x 490 mm), a working height of 920 mm and a load capacity of up to 100 kg, this brush wash stand is suitable for cleaning medium-sized and heavier parts.

The sturdy powder-coated sheet steel construction and the robust galvanised slatted grate guarantee a long service life.The lowered drain, as well as the drain slopes, ensure that everything flows back into the barrel and the cleaner cannot overflow.

The convenient and safe foot switch technology is user-friendly and easy to operate.

The unique IBS special pump is the heart of the IBS parts cleaning equipment and is designed for use in IBS parts cleaning equipment. The pump works self-priming, pressureless and is absolutely trouble-free and maintenance-free.

Technical data

External dimensions device	800 x 671 x 1125 mm
Working surface	790 x 490 mm
Working height	920 mm
Load capacity	100 kg
Passport. Container	50 l
Connection	230 V, 50 Hz
Weight	43 kg

Advantages

Saving time and operating costs, as heating of the cleaner is not necessary
Robust and stable construction with a long service life
by reusing the cleaner several times, you save operating costs and protect the environment at the same time
mobile, for mobile use

Applications

For manual cleaning of grease-contaminated metal and plastic components, e.g. in the following areas:

Industrial parts cleaning and surface degreasing
Maintenance and repair of production plants, conveyor belts, fittings, pumps, motors and other machine parts
Repair and maintenance of all types of means of transport, e.g. motor vehicles, trucks and rail vehicles, ground and material handling vehicles, agricultural and construction machinery

IBS circulation principle

By operating the foot switch, the IBS special pump delivers the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).

The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.

During the manual cleaning process, fluid constantly flows in and the contaminated fluid flows back into the barrel.

In the barrel, the cleaning fluid is separated from the cleaning fluid by a hose.

In the barrel, the entrained foreign substances separate themselves from the cleaner and settle at the bottom of the barrel. Since the pump tube is mounted above the bottom of the barrel, the pump always sucks in clean special cleaner.

Thanks to this self-cleaning system, the barrel is always clean.

This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period of time (6 to 12 months).

The cleaner is replaced by simply changing the drum. This functional principle saves resources, is sustainable, and saves costs and energy.
