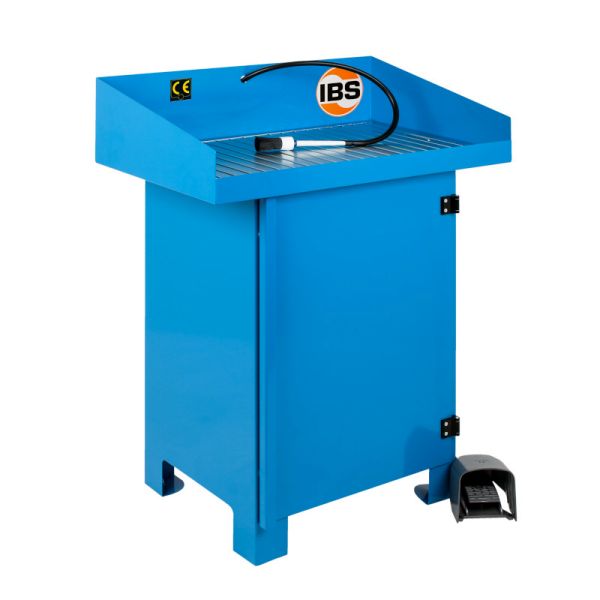

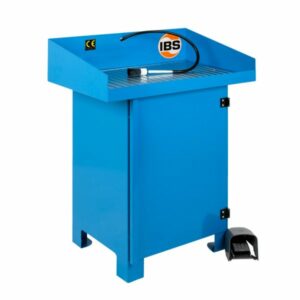

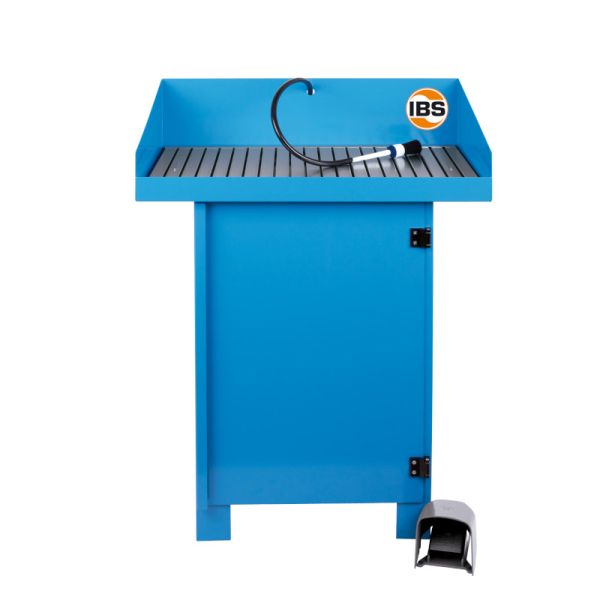

IBS-Parts Cleaning Device Type G-50-I

Closed industrial version. Sturdy and compact design, for ringing larger and medium-heavy parts (up to 150kg).
SKU: 2120008 Categories: ,

Description

The IBS parts cleaning device type G-50-W was specially developed for manual brush cleaning of oil and grease contaminated parts, with cold cleaner (petroleum-based hydrocarbon mixtures).

This closed workshop version in ergonomic workbench height (895 mm), has a working surface of 646 x 465 mm. Due to its stable and compact design, this brush washstand is suitable for cleaning small and light parts weighing up to 50 kg.

The sturdy powder-coated sheet steel construction and the robust galvanised slatted grate guarantee a long service life.The lowered drain, as well as the drain slopes, ensure that everything flows back into the barrel and the cleaner cannot overflow.

The convenient and safe foot switch technology is user-friendly and easy to operate.

The unique IBS special pump is the heart of the IBS parts cleaning units and is designed for use in IBS parts cleaning units. The pump works self-priming, pressureless and is absolutely trouble-free and maintenance-free.

Technical data

External dimensions device

800 x 500 x 1100 mm
Working surface

790 x 490 mm
Working height

895 mm
Load capacity

150 kg
Passport. Container

50 l
Connection

230 V, 50 Hz
Weight

40 kg

Advantages

  • ideal for use in any workshop or maintenance department
  • with increased load capacity
  • Compact & stable construction
  • ergonomic design
  • 3-year extended factory warranty on devices and pump (when using IBS special cleaners)

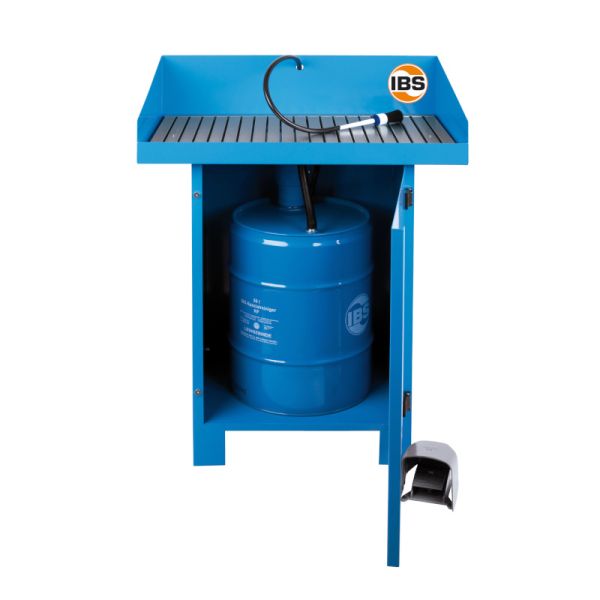

IBS circulation principle

By operating the foot switch, the IBS special pump delivers the cleaning agent from the drum via a hose to the cleaning brush (hollow brush).

The workpiece to be cleaned lies on the support grid and is cleaned with the brush and the cleaning fluid.

During the manual cleaning process, fluid constantly flows in and the contaminated fluid flows back into the barrel.

In the barrel, the cleaning fluid is separated from the cleaning fluid by a hose.

In the barrel, the entrained foreign substances separate themselves from the cleaner and settle at the bottom of the barrel. Since the pump tube is mounted above the bottom of the barrel, the pump always sucks in clean special cleaner.

Thanks to this self-cleaning system, the barrel is always clean.

This self-cleaning process ensures that the IBS special cleaner has a long service life and can be reused for an above-average period of time (6 to 12 months).

The cleaner is replaced by simply changing the drum. This functional principle saves resources, is sustainable, and saves costs and energy.
